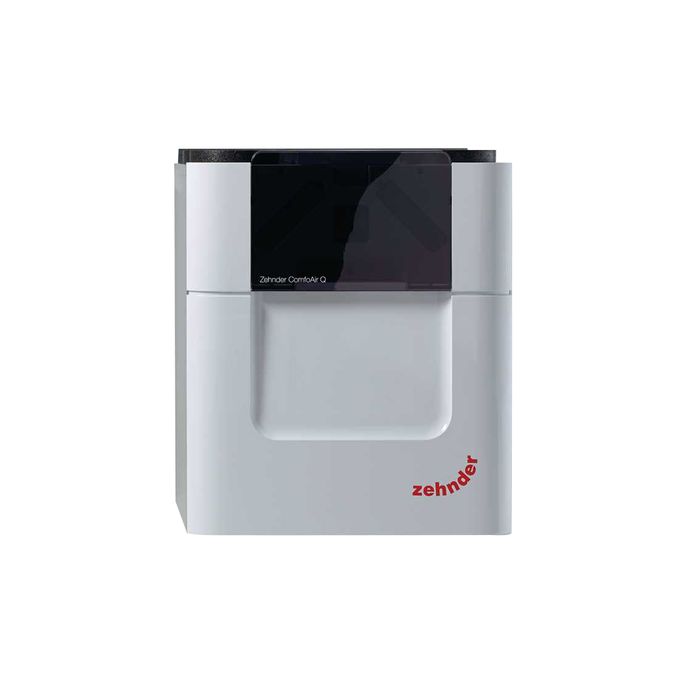

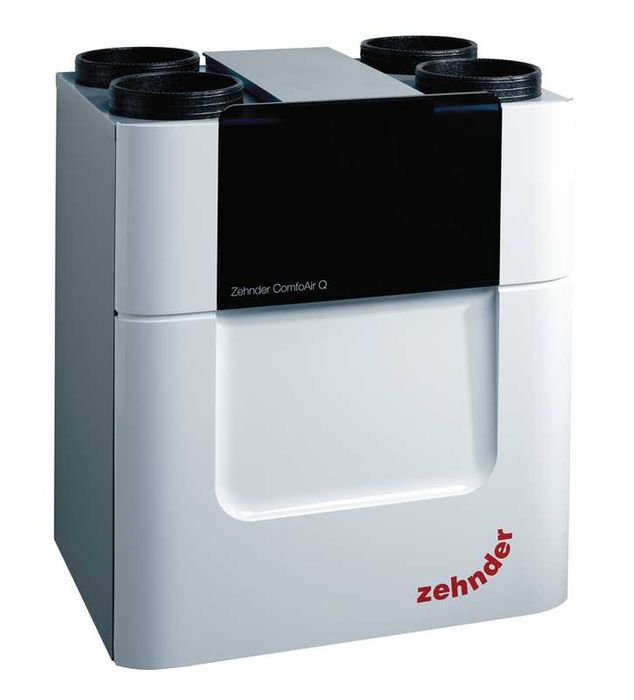

Zehnder ComfoAir Q600 Heat Recovery Unit
Key Features
- Standard or preheater models available
- Suitable for house sizes up to 350m2
- Provides up to 87% heat recovery efficiency
- 2 x G4 filters
- Passive House certified
- Counter flow heat exchanger
- A+ energy efficiency
- Left or right-hand configuration via the unit’s software
Technical features
- EC motors
- Airflow rate @ 100Pa - 600 m3h/r
- 4 Variable speed flow rate set points
- 100% full summer bypass
- Sound level @3m – 28 dB(A)
- Dimensions W x H x D - 725mm x 850mm x 570mm
- Weight - 50kg
- Duct diameter – 180mm

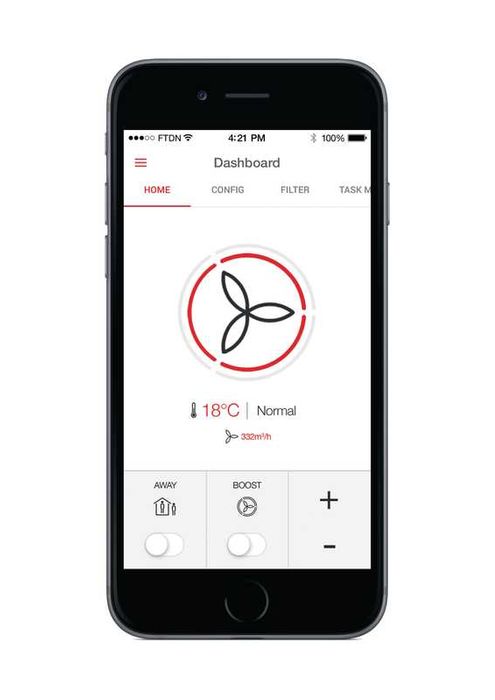

- Controllability: This unit can be controlled via ComfoSense LCD Controller, ComfoConnect LAN application interface or ComfoConnect KNX Building management interface
- Installation: Suitable for vertical wall mounting or floor stand with the ability to allow left or right-hand configuration through the unit’s software
- Construction: This unit is constructed of powder coated sheet steel and is fully insulated using high quality EPP to maintain excellent thermal features
