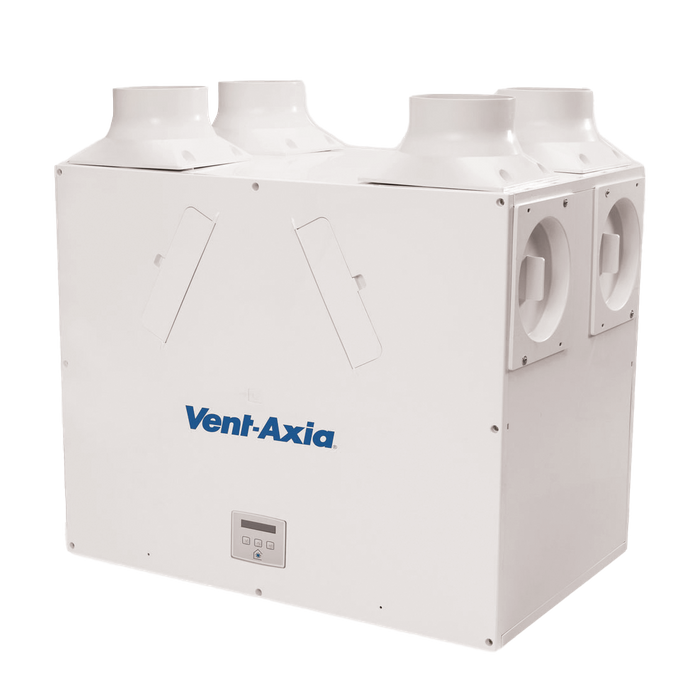

Key Features – Vent Axia Plus B

• Suitable for floor areas up to 250m2
• Delivers an airflow rate of up to 425 m³/hour @ 100 Pa
• Full 100% automatic summer bypass to supply unheated air in the summer
• Sap Appendix Q (BRE) approved
• Internal humidity sensor for automatic speed control Latest low energy EC/DC motors
• Digital controller on unit and optional wall mounted controller
• PVC Counterflow heat recovery core
• High heat recovery efficiency of up to 90%.
• Vertical or horizontal pipe connections
• Multiple Control options including three 0 to100% fan speed settings, nighttime quiet mode, Purge, Humidity, BMS, timer delay, 0-10v & 240v boost options
• 2 x G4 filters (optional M5)
• Low weight of only 24KG
• UK manufactured MVHR unit with 5 Year parts warranty through BPC
• Optional acoustic Top Box

High Performance

The Sentinel Kinetic Plus benefits from the latest high efficiency, ED/DC backward curved impeller design, ensuring the lowest possible energy consumption, ultra quiet operation and an exceptional performance range to houses with a floor area of up to 250m2

With a high performance of 425 m3/hr at 100Pa while still achieving almost 90% heat recovery. The fully automatic capability of the Kinetic range means that adequate ventilation is always achieved.

Integral Humidity Sensor

The integral humidity sensor increases speed in proportion to relative humidity levels, saving energy and reducing noise. The sensor also reacts to small but rapid increases in humidity, even if the normal trigger threshold is not reached. This unique feature ensures adequate ventilation, even for the smallest wet room. The nighttime relative humidity setback feature suppresses nuisance tripping as humidity gradually increases with falling temperature.

Digital Controller

A digital controller is supplied fitted to the unit allowing multiple options on programming and controllability, including 3 x Integral infinitely variable fan speed control on supply and extract there is also an optional LCD wall mounted controller available

Spigot Options

Spigots may be re-positioned from vertical to give horizontal connection or a combination of vertical and horizontal connection. Optional 180mm/200mm spigots can simplify connection in commercial installations where larger diameter duct work has been used.

Orientation

This unit is available in both a right hand (external pipes to the RHS) and left-hand version (external pipes to the LHS) it is also possible to convert the orientation on site by following our instruction manual

100% summer By-pass

During hot weather you can activate the summer By-Pass that will only bring the filtered air in at external temperatures allowing you to naturally cool your home

BMS

The Kinetics’ BMS capability is also ideal for those commercial applications where landlords or property managers want to monitor and optimise building performance and maintenance.

The Kinetic BMS can provide status information and its self-diagnostics can report if any fault is found.

Filtration

The unit comes supplied with G4 filters with an option of upgrading the air supply filter with a G5 filter that have tool free access

As many systems are placed within cupboards the unique filter design folds as you remove it to ensure easy access in restricted spaces.

Acoustic enclosure

For scenarios where noise is a critical issue, an optional Acoustic Enclosure is available to reduce breakout noise and the Acoustic Top Box will reduce in-duct noise at key frequencies.

Frost Protection

Automatic frost protection effective to -20°C

External Control Components

• Integral BMS input/output interfaces –
• 0-10V proportional speed adjustment
• Volt free contacts
• 24V sensor supply
• Integral on/off or trickle boost function from remote switch, e.g. PIR occupancy detector
• Switched Live input with adjustable ‘delay-on’ feature
• Fan failure or component failure indicated via individual fault code display
• Running time counter
